Has anyone been able to use the add_file_to_column to upload files?

  • February 1, 2024
  • 14 replies
  • 973 views

Hello!
3 days ago my tool was working perfectly, when I uploaded the image to it, it used my own API that is connected to Monday, to send the image to a Monday table. It fetches automatically the ID of the table, and the ID of the column is always the same. I am running it like this, on my API:

app.post('/upload-file', upload.single('file'), async (req, res) => {
    if (!req.file) {
        return res.status(400).send('No file uploaded.');
    }

    // Extract partId from the query string
    const partId = req.query.peca; // This is the board / table ID, it is available on the URL
    if (!partId) {
        return res.status(400).send('Part ID is missing.');
    }

    const formData = new FormData();

    // GraphQL mutation with a variable for the file
    const mutation = `
        mutation ($file: File!) {
            add_file_to_column (item_id: ${partId}, column_id: "arquivos", file: $file) {
                id
            }
        }
    `;

    // Append the mutation and the file to the formData
    formData.append('query', mutation);
    formData.append('variables[file]', fs.createReadStream(req.file.path), {
        filename: req.file.originalname,
        contentType: req.file.mimetype,
    });

    try {
        const response = await fetch('https://api.monday.com/v2/file', {
            method: 'POST',
            body: formData,
            headers: {
                ...formData.getHeaders(),
                'Authorization': 'MONDAY_API_KEY',
                'API-Version': '2023-10'
            },
        });

        const result = await response.json();
        if (result.data) {
            logWithTimestamp('File uploaded successfully to Monday.com', result);
            res.send('File uploaded successfully');
        } else {
            logWithTimestamp('Error uploading file to Monday.com', JSON.stringify(result.errors));
            res.status(500).send('Error uploading file to Monday.com');
        }
    } catch (error) {
        logWithTimestamp('Error in file upload', error.message); // Log the error message
        res.status(500).send('Error in file upload');
    } finally {
        fs.unlink(req.file.path, (err) => {
            if (err) logWithTimestamp('Error deleting file:', err);
        });
    }
});

It stopped working from a day to the other, did something change? Am I doing something wrong? It always returns “Unsupported query” now…

Thank you!

14 replies

dvdsmpsn
Forum|alt.badge.img+1
  • Participating Frequently
  • February 1, 2024

My guess here is that you built this some time ago and are using a version of the api which has been withdrawn.

I think you can ask for an extension of the old version of the api on your account while you update the code to the new version.


  • Author
  • New Participant
  • February 1, 2024

Hello David, thank you very much for your answer, means a lot.

Makes a lot of sense, but even if I remove the version from there (like the Postman call from the Postman collection), it still has the same output, with or without version 😦

Thank you!


  • Author
  • New Participant
  • February 1, 2024

It’s weird because there is another user here with problems using add_file_to_column… It was working just perfectly a few days ago, and suddenly, it stopped working… I really really would appreciate any help, and wouldn’t mind sharing more details if needed, after hours and hours and hours of debugging, I really don’t know what to do anymore.

Already created sample Node.js scripts to try to query it, making it every way possible, and everytime I just keep getting 400 Unsupported Query… 😦


Matias.Monday
Forum|alt.badge.img
  • monday.com Team Member
  • February 4, 2024

Hello there @imjoaofernandes,

This is the script I use for uploading files. Perhaps it is of use:

import fs from 'fs';
import fetch from 'node-fetch';

// adapted from: https://gist.github.com/tanaikech/40c9284e91d209356395b43022ffc5cc

// set filename
var upfile = 'images.png';

// set auth token and query
var API_KEY = "MYAPITOKENHERE"
var query = 'mutation ($file: File!) { add_file_to_column (file: $file, item_id: 11111111, column_id: "files") { id } }';

// set URL and boundary
var url = "https://api.monday.com/v2/file";
var boundary = "xxxxxxxxxx";
var data = "";

fs.readFile(upfile, function(err, content){

    // simple catch error
    if(err){
        console.error(err);
    }

    // construct query part
    data += "--" + boundary + "\\r\\n";
    data += "Content-Disposition: form-data; name=\\"query\\"; \\r\\n";
    data += "Content-Type:application/json\\r\\n\\r\\n";
    data += "\\r\\n" + query + "\\r\\n";

    // construct file part
    data += "--" + boundary + "\\r\\n";
    data += "Content-Disposition: form-data; name=\\"variables[file]\\"; filename=\\"" + upfile + "\\"\\r\\n";
    data += "Content-Type:application/octet-stream\\r\\n\\r\\n";
    var payload = Buffer.concat([
            Buffer.from(data, "utf8"),
            new Buffer.from(content, 'binary'),
            Buffer.from("\\r\\n--" + boundary + "--\\r\\n", "utf8"),
    ]);

    // construct request options
    var options = {
        method: 'post',
        headers: {
          "Content-Type": "multipart/form-data; boundary=" + boundary,
          "Authorization" : "MYAPITOKENHERE"
        },
        body: payload,
    };

    // make request
    fetch(url, options)
      .then(res => res.json())
      .then(json => console.log(json));
});

If you still have issues, please contact us via this form and our team will take a look into it!

Cheers,
Matias


  • Participating Frequently
  • March 28, 2024

Hi, Martias
I tried your code, but it’s still returning error.

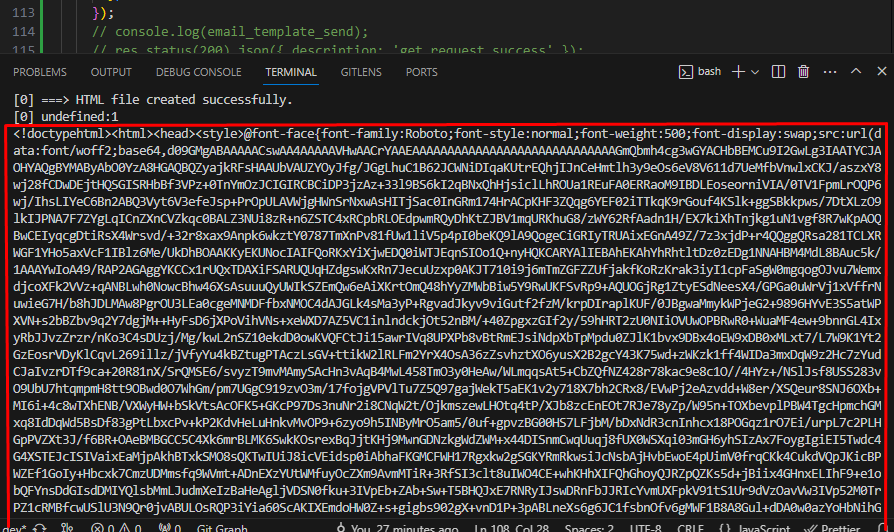

This is Error displayed as an HTML file.


This is error.

please teach me how to upload file.
Thank you.


dvdsmpsn
Forum|alt.badge.img+1
  • Participating Frequently
  • March 28, 2024

What messages do you see in the html returned?

Perhaps there is a clue in the returned html.


Matias.Monday
Forum|alt.badge.img
  • monday.com Team Member
  • March 31, 2024

That is odd @Bolt,

What happens if you use this cURL (changing the relevant information for your, obviously):

curl --location 'https://api.monday.com/v2/file/' \\
--header 'Authorization: APITOKENHERE' \\
--header 'API-version: 2023-10' \\
--form 'query="mutation add_file($file: File!) {add_file_to_column (item_id: ITEMIDHERE, column_id:\\"files\\" file: $file) {id}}
"' \\
--form 'map="{\\"image\\":\\"variables.file\\"}
"' \\
--form 'image=@"/Users/matias/Downloads/myfile.png"'

  • Participating Frequently
  • March 31, 2024

Thank you for your reply, @Matias.Monday

I just used your command, it works,
but is that okay if I should remove the api-version?


Matias.Monday
Forum|alt.badge.img
  • monday.com Team Member
  • March 31, 2024

Hello again @Bolt,

Yes! You can. No need for it actually.


  • Participating Frequently
  • March 31, 2024

Thanks, @Matias.Monday
Then how does it work when your api version is upgraded?
Maybe I should upgrade my command?


Matias.Monday
Forum|alt.badge.img
  • monday.com Team Member
  • April 1, 2024

Hello again @Bolt,

I am not sure I understand the question. The API version in this case is irrelevant since the same mutation works for all present API versions and it works with the 2024-01 (current version)😁


  • Participating Frequently
  • April 1, 2024

Really thank you for your kindness reply.
Once the api version is upgraded and if I have a problem with my query, I will ask you again.
Thank you


Matias.Monday
Forum|alt.badge.img
  • monday.com Team Member
  • April 2, 2024

Hello again @Bolt,

You can avoid having issues with the new versions by checking our release notes here 😁


  • New Participant
  • July 24, 2024

This worked for me. Thank you!
Monday should link to your example.
